ZZ4257V3241W
HOWO
| Quantity: | |
|---|---|
Product Description

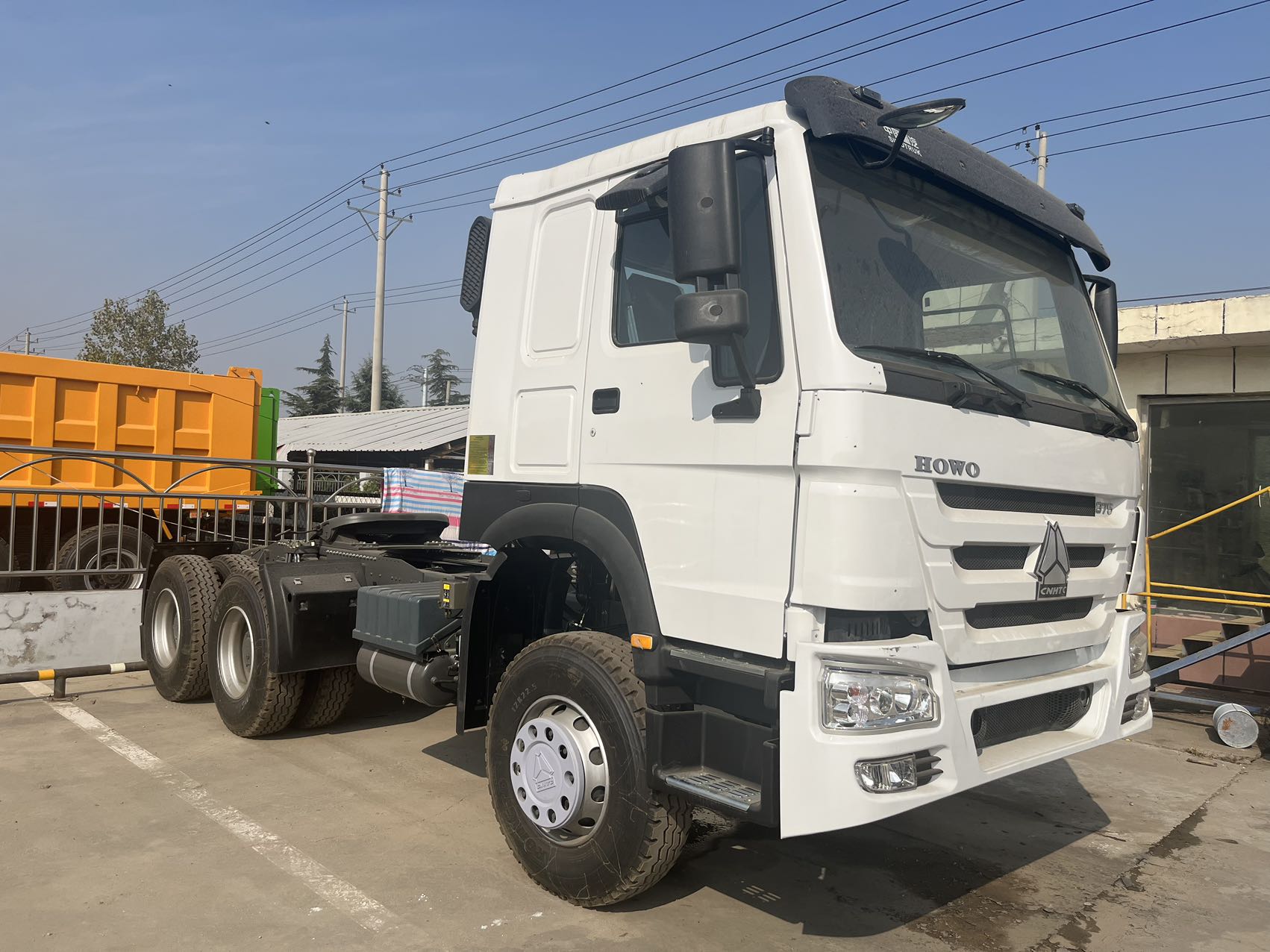

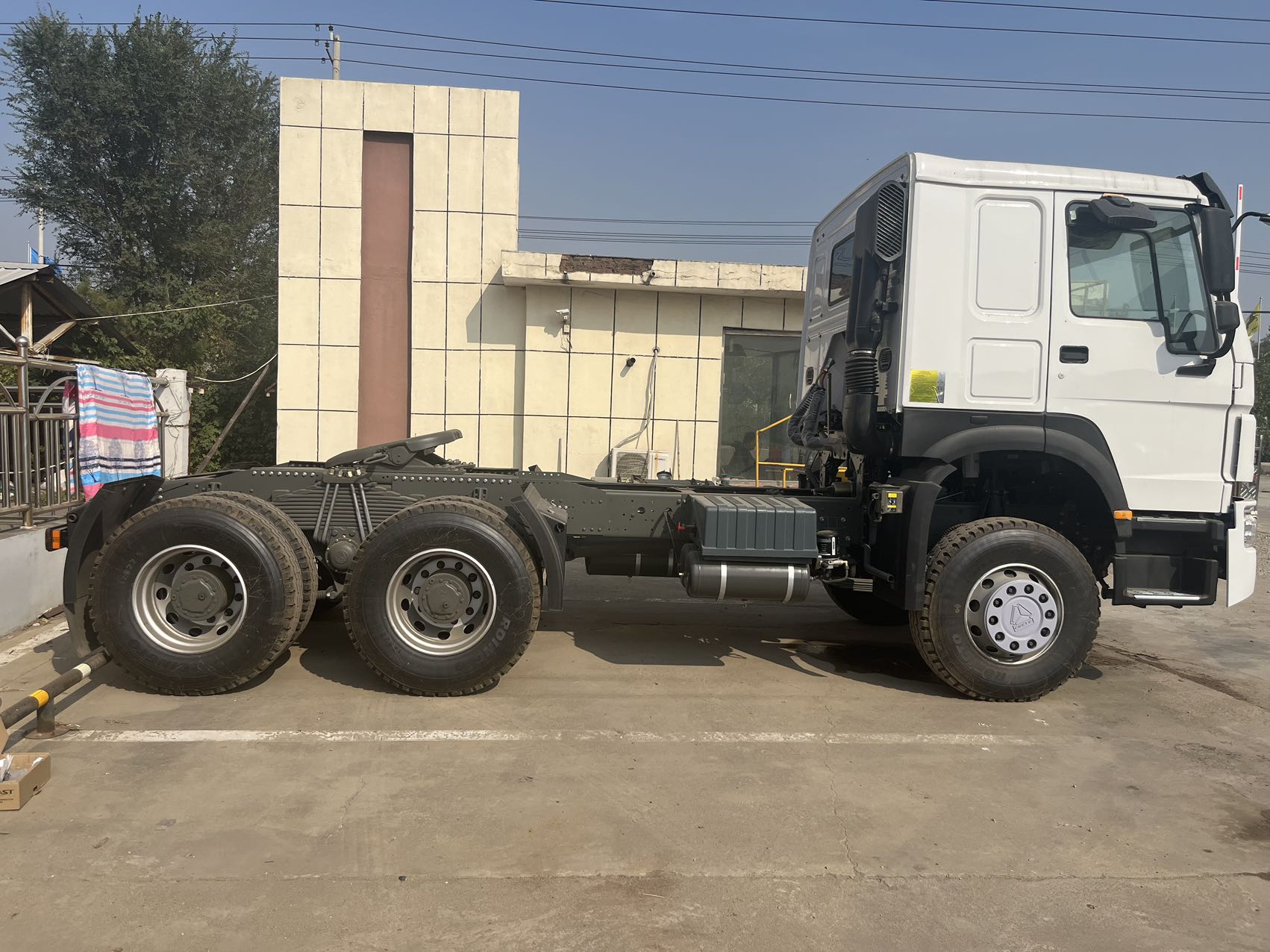

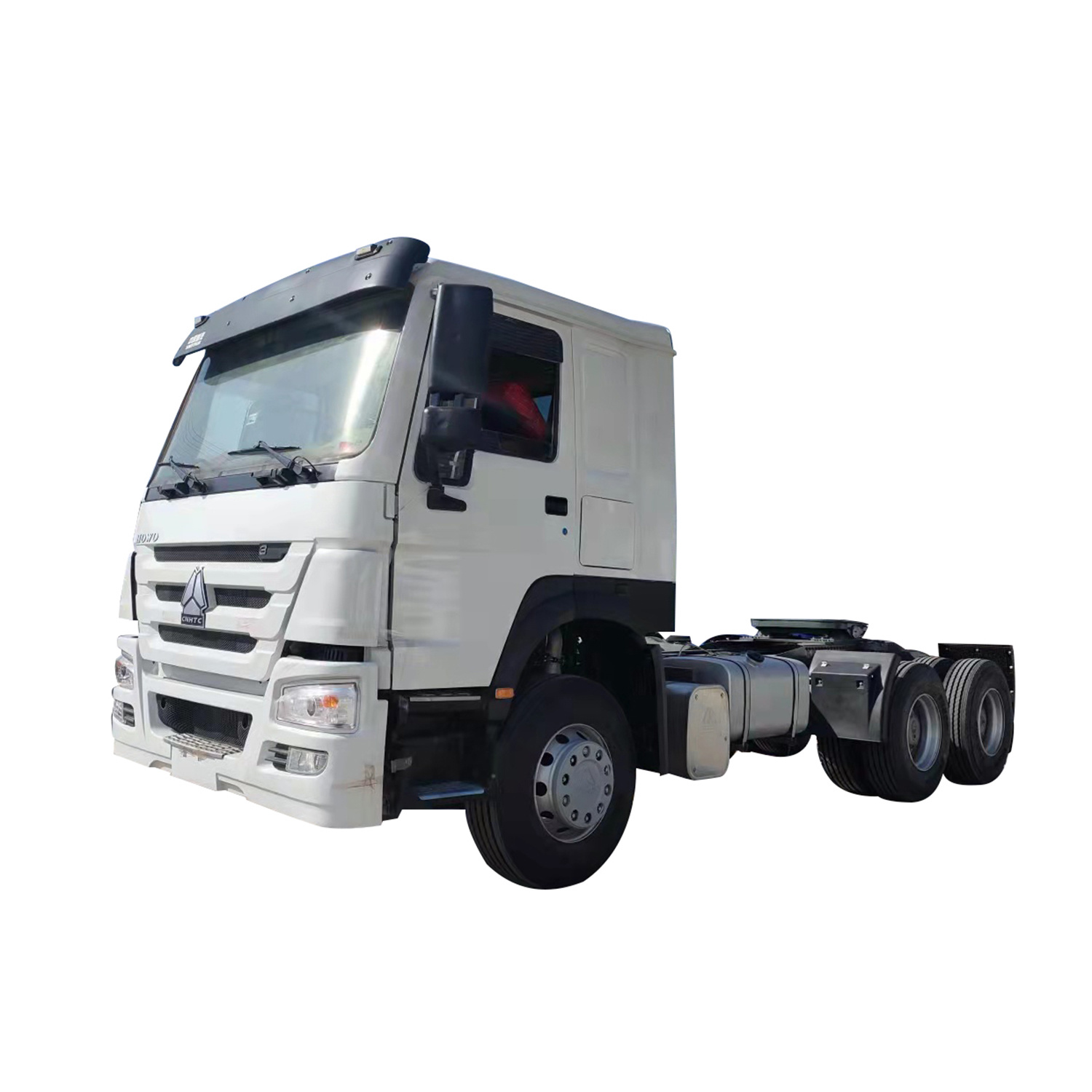

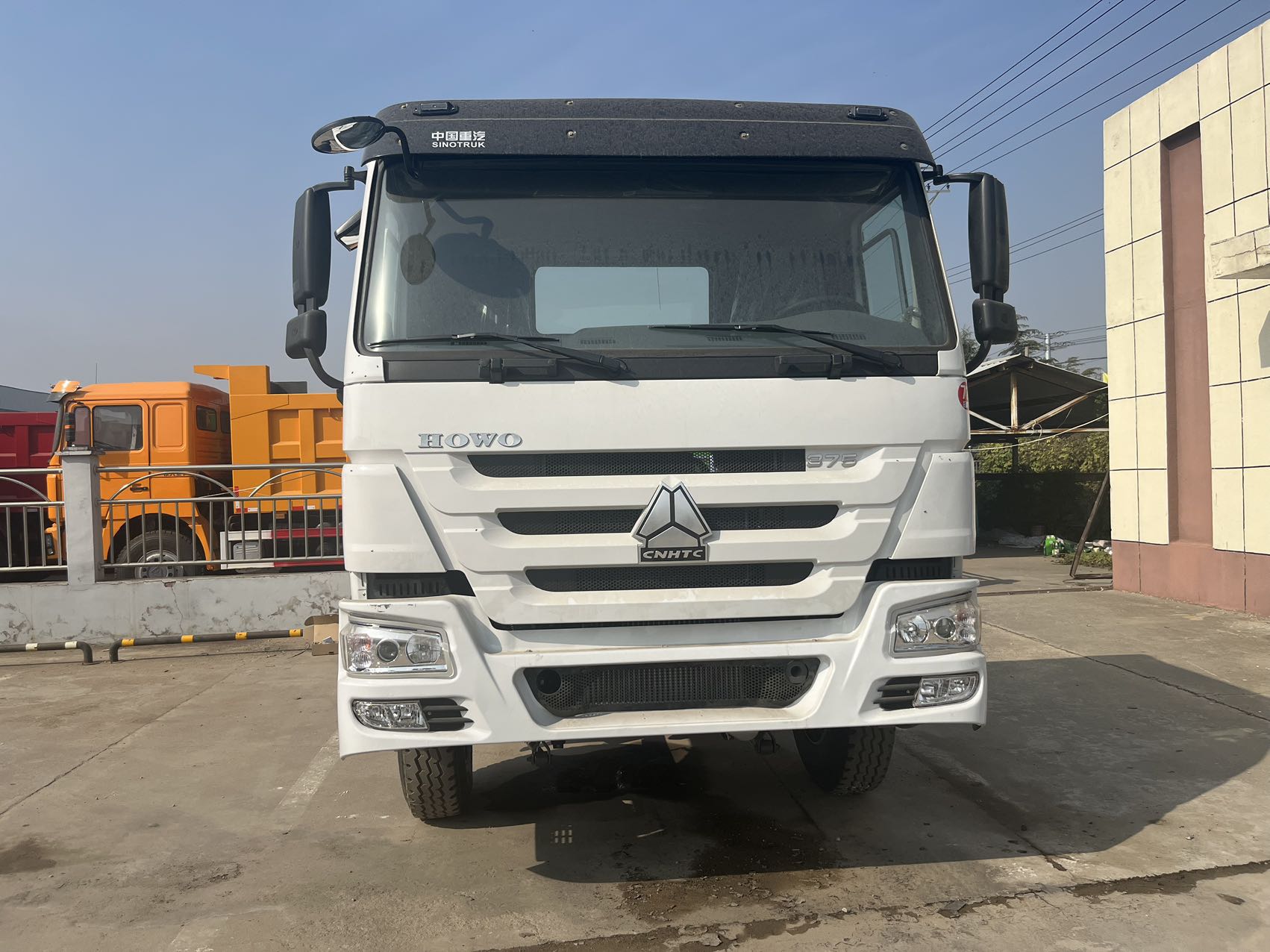

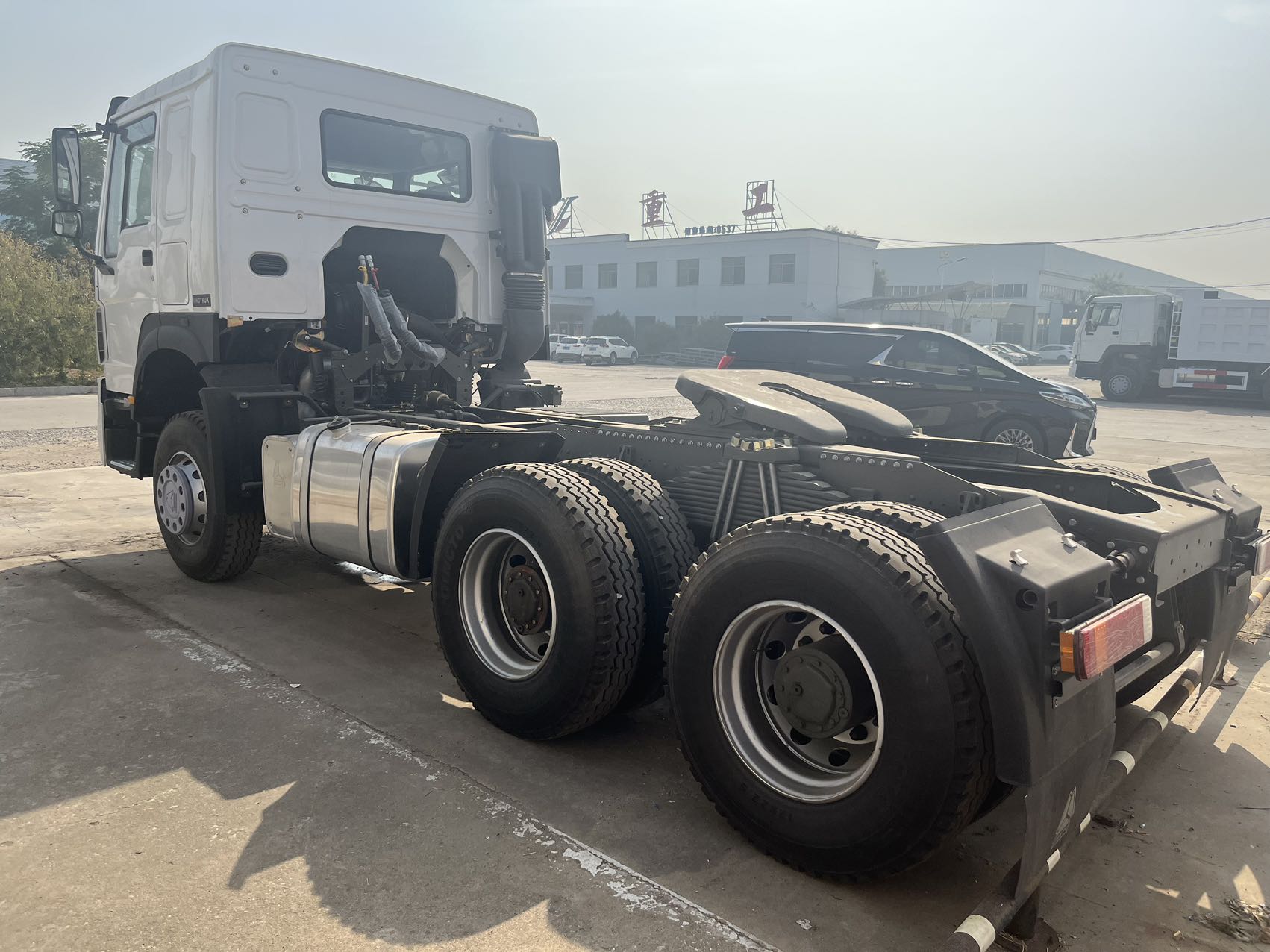

HOWO 6X4 420 HP tractor is a heavy-duty truck produced by China National Heavy Duty Truck (CNHTC), which is mainly used for hauling large cargo transportation vehicles, such as trailers and semi-trailers. Here are some main features and technical parameters about this tractor:
Powerful power system: HOWO 6X4 420 hp tractor is equipped with a high-performance diesel engine with a power of 420 hp, which provides powerful power output and adapts to a variety of road conditions and hauling tasks.
Reliable transmission system: Equipped with a reliable transmission system, it usually adopts advanced transmission and differential lock technology to ensure the stability and reliability of the vehicle in the hauling process.
Excellent traction capacity: The 6X4 drive form provides good traction force, which can cope with various road conditions and traction working conditions and ensure the safe and stable transportation of goods.
Color | Optional (Red, White, Yellow, Blue) |
Driving type | LHD/RHD |
Engine | Make: SINOTRUK Engine model: D12.42, 420hp, Euro 2 6-cylinder in-line with water cooling, turbo-charging and intercooling. Rated Power (kw/rpm): 309/2000 Maximum Torque (Nm): 1820N.m Maximum Torque speed: 1100～1400RPM Displacement: 11.596 L |
Cabin | HW76 cabin, with one sleeper (berth), Air-conditioner, MP3, safety belts, adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers, etc. |
Transmission | HW19710, 10 F and 2 R, manual. Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction. |
Steering | ZF8118 power steering with hydraulic system. |
Front Axle | Heavy duty axle, 9000kgX1, drum brake. |
Rear Axles | Heavy duty axle,16000kgX2. Speed ration: 4.42;4.8;5.73 |
Wheelbase (mm) | 3200+1350 |
Front/Rear overhang (mm) | 1500/725 |
Wheel track (front/rear) mm | 2022/1850 |
Minimum ground clearance (mm) | 314 |
Approach/departure angle (°) | 16/70 |
Braking System | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
Electrical System | Voltage: 24 V Generator: 1540W Starter: 24 V, 7.5 Kw Batteries: 12V/165Ah, 2 pieces Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Fifth wheel | 50# or 90# |
Tire | 315/80R22.5, tubeless tire, plus one spare tire (11 units) |
Fuel tank | 400L volume |
External dimension | 6950x 2600x3150 mm |
